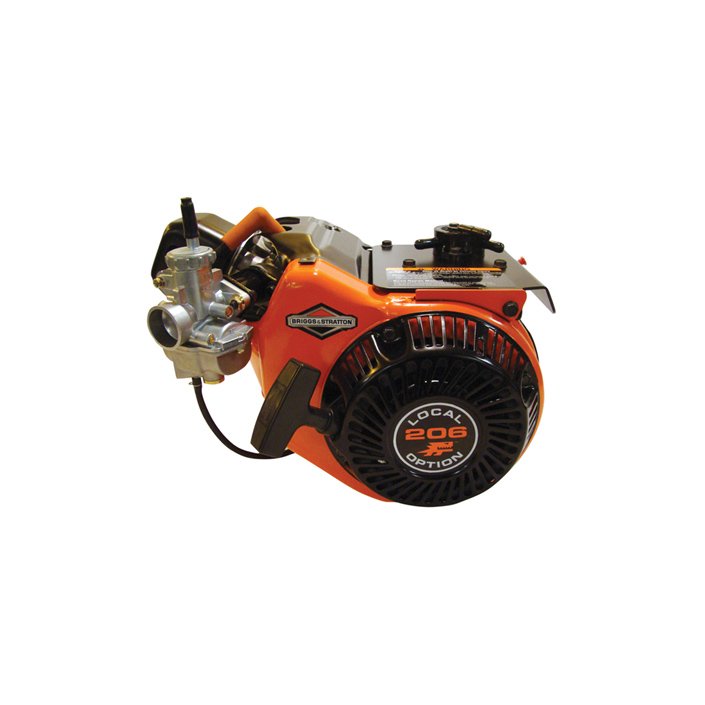

Briggs Local Option 206 Engine (LO206)

Model: 124332-8201-01 (LO206)

Hand-built in Milwaukee, WI. using tooling and dies specifically for racing for unparalleled repeatability.

Factory sealed short-block with ground cam and controlled piston pop-up (reducing compression variance)
Simplified IKF/WKA rule set designed to maintain a stock configuration right down to the factory shipped carburetor jets.

General Specs:

Displacement: 12.48 Cu. in. - 206 cc
Bore: 2.6875/2.6885 in.
Compression Ratio: 9 to 1
Factory Timing: 29 degrees BTDC

Features:

-Dual Ball-Bearing, RACING Reinforced Cylinder
-Squeeze-Cast, T-7 Treated, Racing Rod
-Ground Cam w/ Compression Release
-High-Silicon Valve Springs
-PVL™ Digital Ignition System - 6100 RPM Limiter
-Racing Only Intake Port
-Walbro™ Round - Slide Carburetor
-Carbon Steel racing Crankshaft with Induction-Hardened Crankpin
-Federal Mogul™ Cam Ground, Barrel-Faced Piston
-Goetze performance piston ring set
-Chrome-Faced top ring
-Nitrited Dished Exhaust Valve
-Automotive 3-Piece Valve Retainer System
-Beefy Rocker Arm Stud Nuts
